Fuse Block with Negative Bus and LED Fault Indicators, 6- or 12-Circuit Options – WUPP CS-664A1

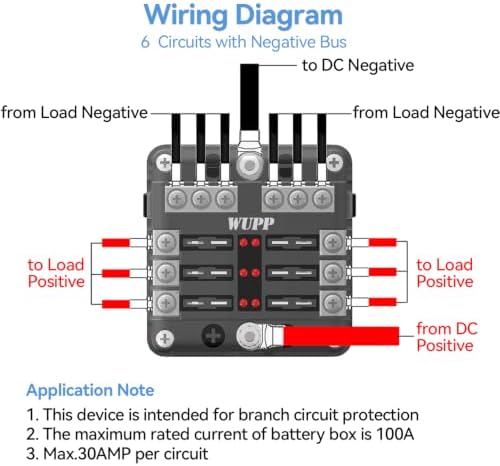

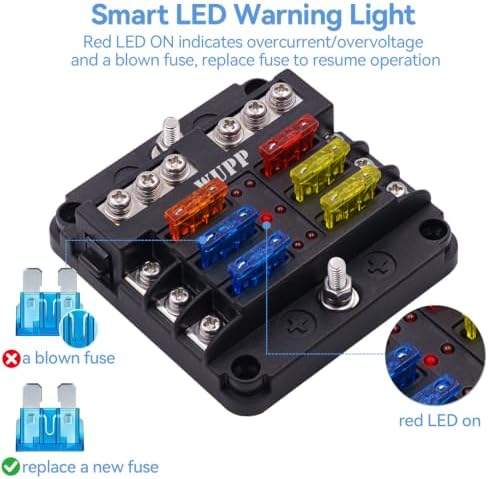

A fuse block with a negative bus groups accessory circuits and grounding points in one organized panel. The source-selected WUPP CS-664A1 provides six ATO/ATC blade-fuse positions, six ground connections and individual LED indicators that illuminate when a fuse blows in a compatible 12–24V DC installation.

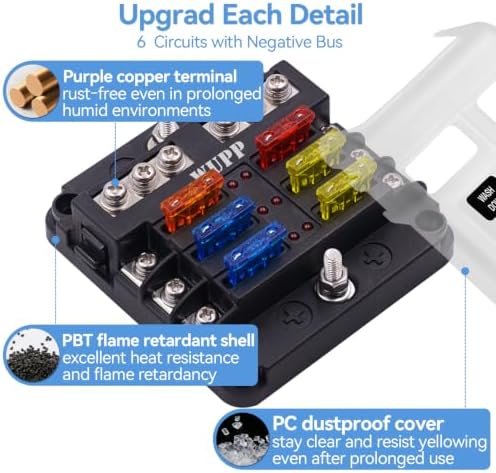

The selected panel uses a flame-retardant PBT base, a transparent PC cover and nickel-plated copper connections. It is rated for up to 100A total and 30A per circuit, and includes twelve assorted fuses, labels and mounting screws. A six-circuit relay version and a twelve-circuit version are also listed, so choose the exact configuration.

Specifications

• Brand: WUPP
• Model and part number: CS-664A1
• Product: Blade fuse block with negative bus
• Source-selected positions: 6
• Source-selected ground connections: 6
• Other listed options: 6 Way with Relay and 12 Way
• Operating voltage stated: 12–24 V DC
• Maximum voltage stated: 32 V
• Maximum total current stated: 100 A
• Maximum current per circuit stated: 30 A
• Fuse type: Standard ATO/ATC blade
• Base: Flame-retardant PBT
• Cover: Transparent PC cover with push latch
• Connections: Nickel-plated copper

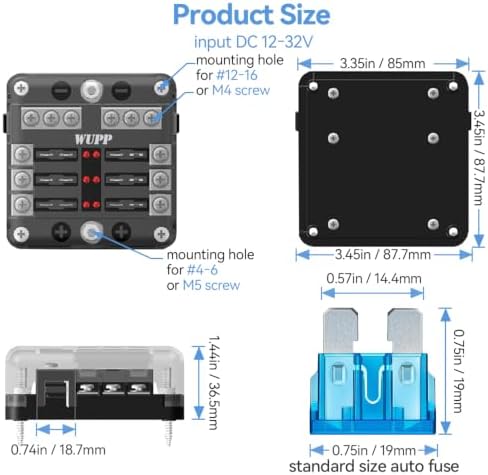

• Source-selected dimensions stated: 87.75 x 85 x 36.5 mm

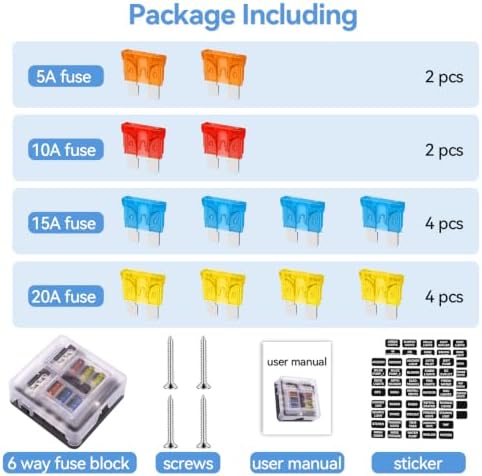

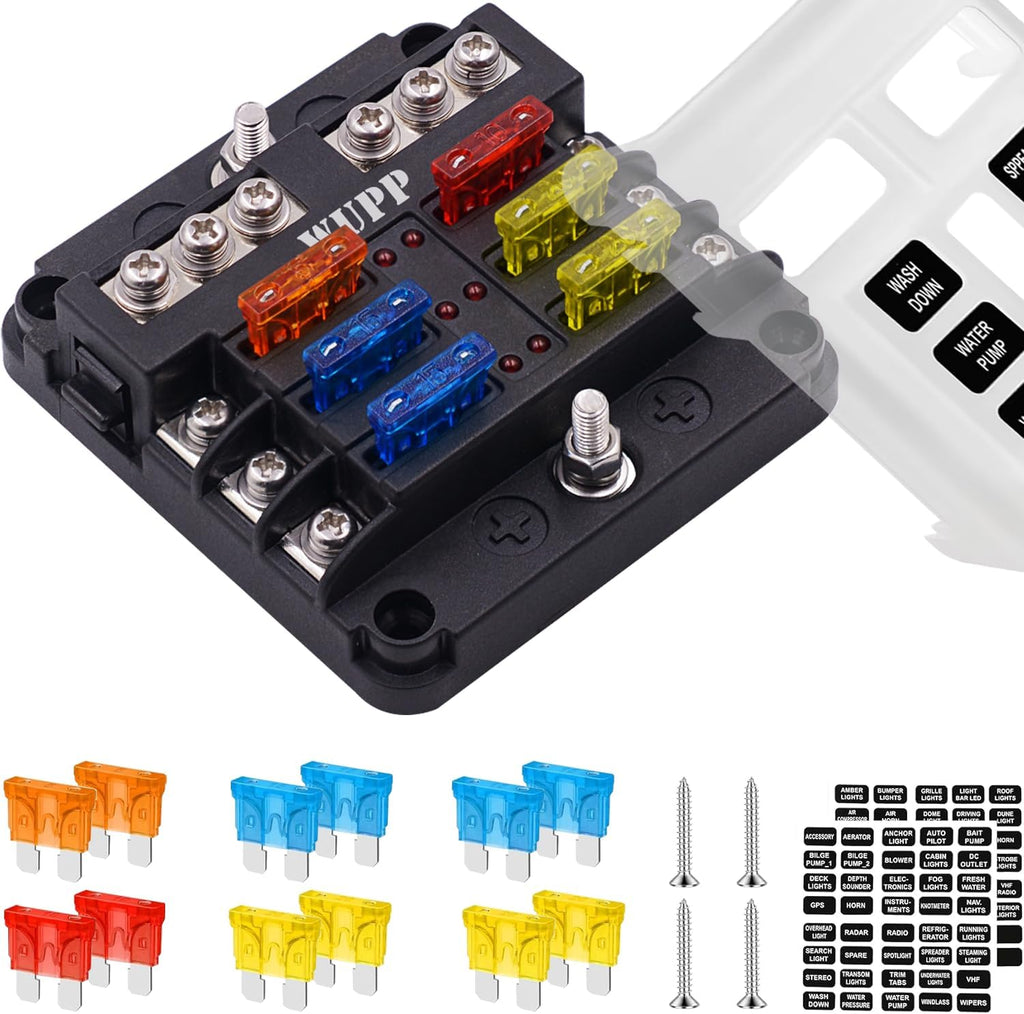

• Selected package: Fuse block, twelve assorted fuses, two label sheets and four screws
