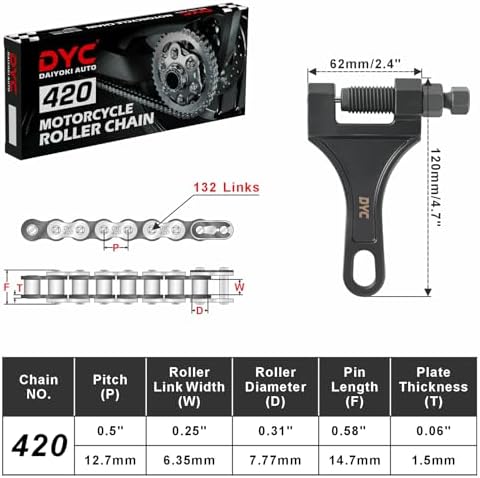

420 Drive Chain Kit with 132 Links 5 Master Links and Chain Breaker – DYCTAHO Gold or Steel

420 drive chain kit supplies a cut-to-fit replacement for compatible mini bikes, pit bikes, dirt bikes, ATVs and go-karts using 420 sprockets. DYCTAHO includes a 132-link alloy-steel chain, five clip-style master links and a chain breaker for sizing, connection and field repair.

Choose a Gold or Natural Steel finish. The chain uses a 12.7 mm pitch, 1.5 mm plate thickness, 7.7 mm roller diameter and a maximum documented width of 16.2 mm. It is rated to 4,000 pounds tensile strength and up to 10 horsepower for qualifying small-engine drivetrains. Start by matching the old chain specification, sprocket pitch, required link count, wheelbase and engine output. Remove only the calculated excess links with the supplied breaker, install the clip in the correct travel orientation and set alignment, slack and lubrication according to the vehicle manufacturer’s procedure.

Specifications

• Brand: DYCTAHO
• Model and part: RCKIT420132
• Product: 420 powersports drive chain kit
• Finish options: Gold or Natural Steel
• Chain length: 132 links
• Included master links: 5 clip style
• Included tool: Chain breaker
• Material: Alloy steel
• Pitch: 12.7 mm
• Plate thickness: 1.5 mm
• Roller diameter: 7.7 mm
• Maximum chain width: 16.2 mm
• Tensile strength: 4000 lb
• Maximum documented engine rating: 10 HP
• Uses: Mini bikes pit bikes dirt bikes ATVs and go-karts with 420 sprockets
