Propane Refill Adapter with Shutoff Valve Tank Gauge and 90-Degree Brass Elbow – CALPOSE Pack Options

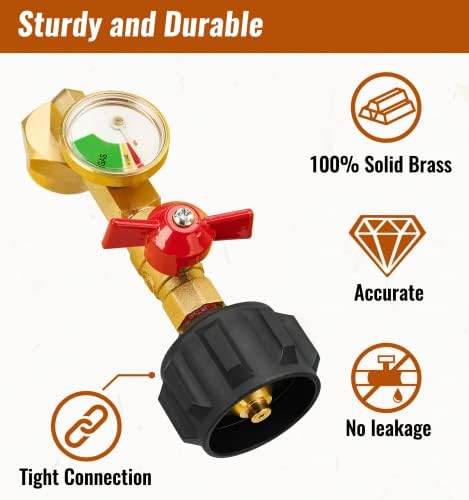

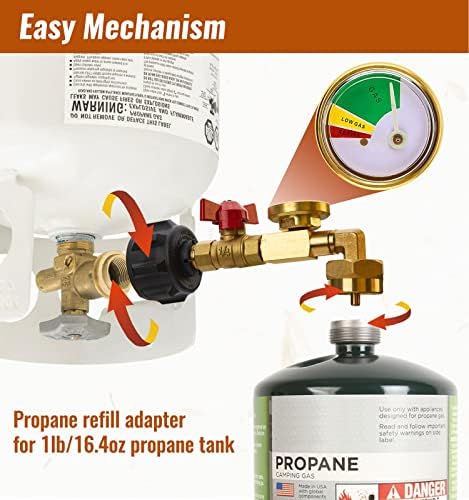

Propane refill adapter connects a larger QCC-1 cylinder to a compatible one-pound bottle through a 90-degree elbow for a compact transfer path. CALPOSE PRA2 combines solid brass construction with an on-off ball valve and gauge so the source tank level and transfer flow can be checked at the connection.

The inlet is listed as QCC-1 and the outlet uses a 1-inch-20 female thread for compatible 16-ounce cylinders. Single- and two-adapter packs are available. Corrosion-resistant brass supports a sealed threaded joint, while the shutoff valve limits gas release during cylinder connection and removal. Refill only cylinders designed and approved for refilling, outdoors and away from ignition sources, and follow the tank, bottle and adapter manufacturers’ instructions. Check every joint for leaks and stop before the receiving cylinder is overfilled.

Specifications

• Brand: CALPOSE
• Model and part: PRA2
• Product: Propane refill adapter
• Pack options: 1 or 2 adapters
• Material and finish: Solid brass
• Design: 90-degree elbow

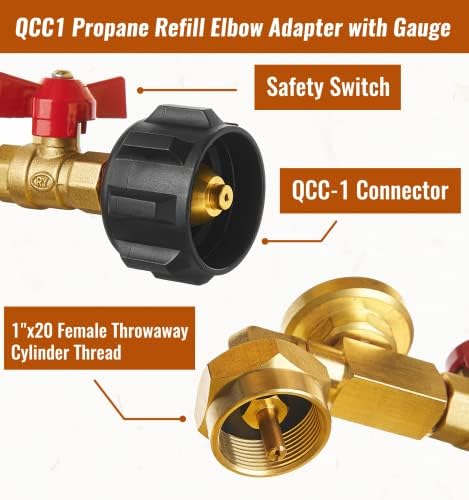

• Inlet: QCC-1
• Outlet: 1 in-20 female
• Ports: 2
• Valve: On-off ball valve
• Display: Propane tank gauge
• Dimensions: 1.5 x 1.5 x 2.5 in
• Use: Compatible large propane tanks and refillable 1 lb or 16 oz cylinders
